Kriter V
by Lamardechois - FredFred
|
95 bubbles |
|
| legendary boat of the 1978 'route du rhum' | |
|

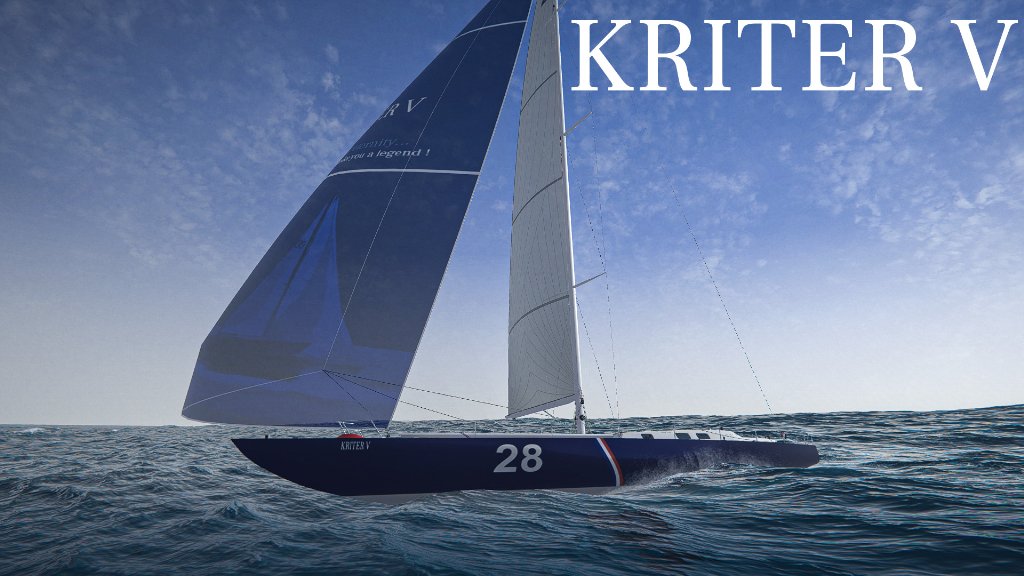

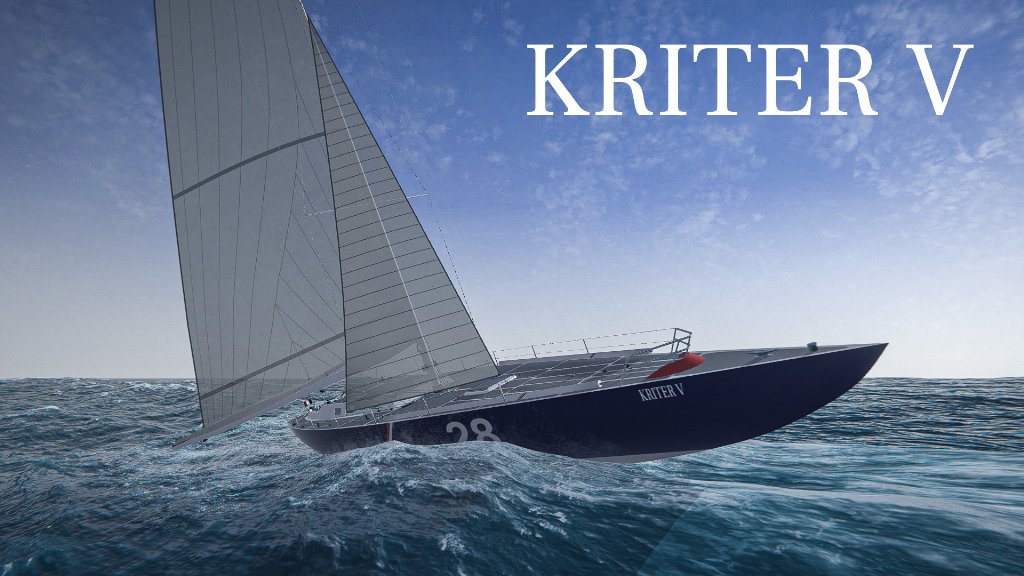

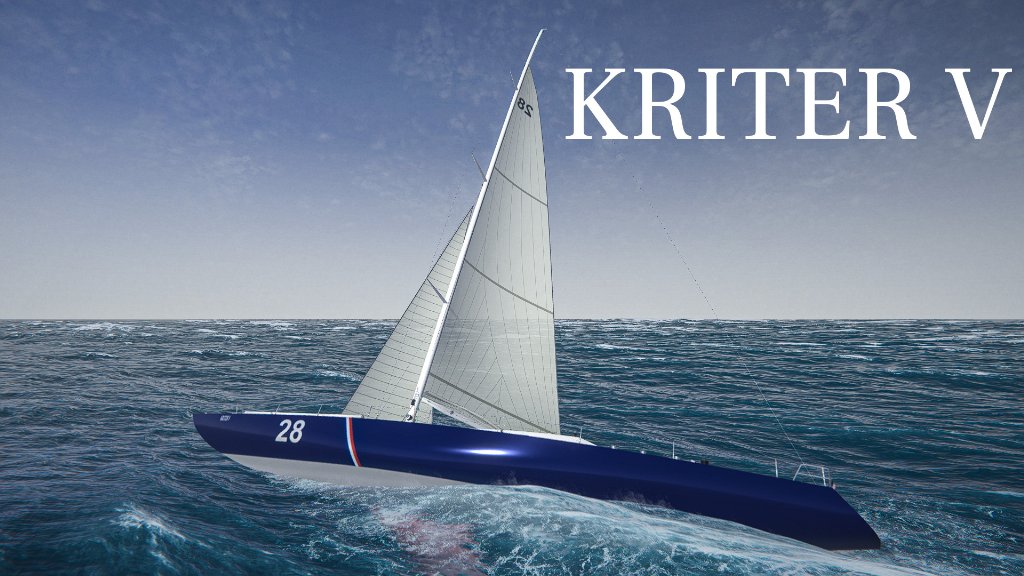

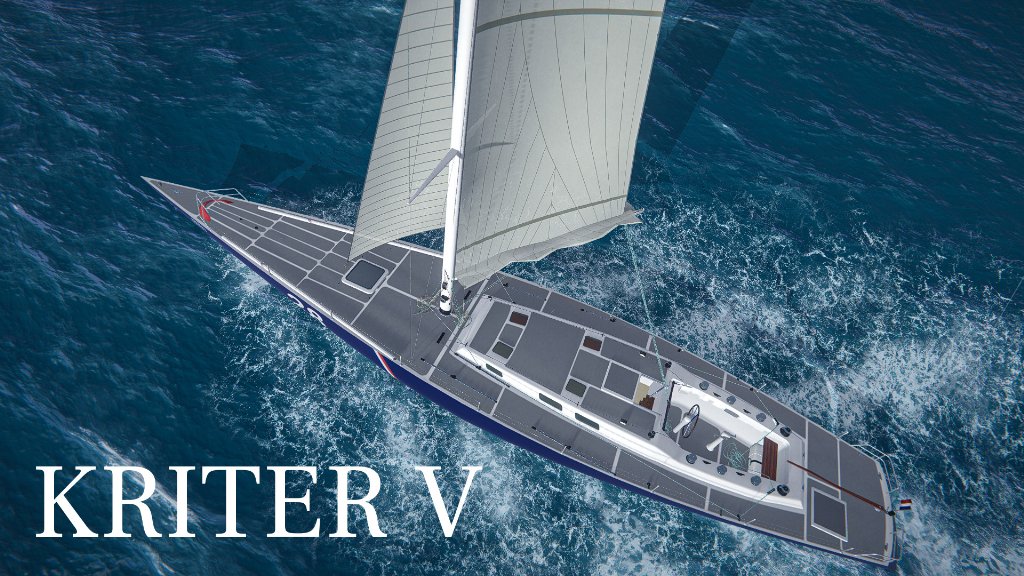

Kriter V is a monohull sailboat designed for ocean racing. She is best known for having seen Michel Malinovsky finish second in the 1978 Route du Rhum behind Mike Birch on his Olympus Photo trimaran by 98 seconds. Kriter V est un voilier monocoque destiné à la course au large. Il est connu pour avoir vu à son bord Michel Malinovsky terminer deuxième de la Route du Rhum 1978 derrière Mike Birch sur son trimaran Olympus Photo pour 98 secondes. Monohull, 21 m long, with a waterline length of 18 m ; Beam: 4.10 m; Material: plywood; Draft: 2.73 m ; Mast: 23 m ; Displacement: 18 tons; Berths: 9 (2 double, 5 single) ; Sailing: cat. 1re ; Monocoque de 21 m de long, pour une longueur de flottaison de 18 m ; Largeur : 4,10 m ; Matériau : contreplaqué ; Tirant d'eau : 2,73 m ; Mât : 23 m ; Déplacement : 18 tonnes ; Couchages : 9 (2 doubles, 5 individuels) ; Navigation : cat. 1re ; |
|
|
created by Lamardechois - FredFred performance weight 26.43726 |
|
Specifications: |
|
| Hull type | Monohull |
| Length over all | 20.92 m. / 68.6 ft. |
| Length waterline | 17.10 m. / 56.1 ft. |
| Beam | 4.10 m. / 13.5 ft. |
| Depth | 2.74 m. / 9.0 ft. |
| Total weight | 18000 kg / 17.7 long tonnes |
| Ballast | 6000 kg / 13228 pounds |
| Max. waterballast per side | 0 liter |
| Mast | 23.18 m. / 76.1 ft. |
| Sail area up wind | 153.9 m². / 1656 ft². |
| Max. sail area | 222.3 m². / 2393 ft². |
| D/L ratio | 99 |
| S/D ratio | 22.4 |
| Sails: | |
| Mainsail | 78.7 m². / 848 ft². dacron 3 reefs |
| Gennaker | 143.6 m². / 1546 ft². dacron |
| Genoa | 75.1 m². / 809 ft². dacron |
| Jib | 35.2 m². / 379 ft². dacron |
| Nr 1 | 21.8 m². / 235 ft². dacron |
| Nr 4 | 14.0 m². / 150 ft². dacron |
| Stormjib | 7.0 m². / 75 ft². dacron |
|
|
|
|
|
|
